Description
UBiQUiTi AIRMAX BASE STATION – AM-2G15-120 – 2.4 GHz, 15dBi
Breakthrough Design and Performance
The innovative airMAX®Sector Antennas feature carrier-class construction and 2×2, dual-polarity performance.
Reduced Interference, Higher Gain
Highly resistant to noise interference, the airMAX®Sector Antennas provide superior gain and beam performance for high-capacity, multipoint networks.
RF Isolation and Beamwidth Options
The versatile airMAX®Titanium Sector models feature advanced RF isolation and adjustable beamwidth options: 60°, 90° or 120°.
Industrial-Strength Construction
airMAX®Antennas are designed with robust mechanical design for outdoor application use.
Plug and Play Integration
Every airMAX®Antenna has a built-in Rocket™mount, so no tools are needed to install the Rocket BaseStation.
Installing the airMAX®Titanium Sector

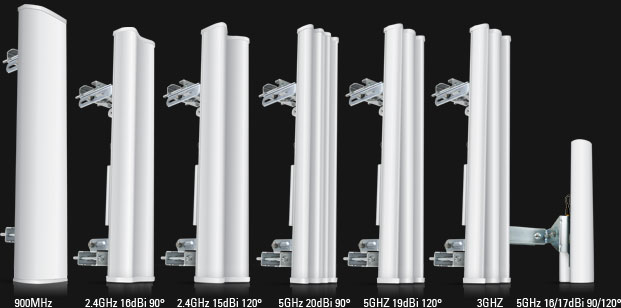

Model Comparison
 AM-9M13
|
 AM-2G15-120
|
 AM-2G16-90
|
 AM-V2G-Ti
|
|
|---|---|---|---|---|
| Frequency | 900 MHz | 2.4 GHz | 2.4 GHz | 2.4 GHz |
| Gain | 13 dBi | 15 dBi | 16 dBi | 60°: 17 dBi 90°: 16 dBi 120°: 15 dBi |
 AM-3G18-120
|
 AM-5G16-120
|
 AM-5G17-90
|
 AM-M-V5G-Ti
|
|
|---|---|---|---|---|
| Frequency | 3 GHz | 5 GHz | 5 GHz | 5 GHz |
| Gain | 18 dBi | 16 dBi | 17 dBi | 60°: 17 dBi 90°: 16 dBi 120°: 15 dBi |
 AM-5G19-120
|
 AM-5G20-90
|
 AM-V5G-Ti
|
||
|---|---|---|---|---|
| Frequency | 5 GHz | 5 GHz | 5 GHz | |
| Gain | 19 dBi | 20 dBi | 60°: 21 dBi 90°: 20 dBi 120°: 19 dBi |
Disruptive 2X2 MIMO price/performance Basestation antennas. Designed to seamlessly integrated with Ubiquiti airMAX Rocket hardware for powerful basestation applications. Featuring great cross-pol isolation, gain, beamwidth patterns, and adjacent frequency noise attenuation performance.
Overview
Sector Coverage The airMAX Sector Antenna is a Carrier Class 2×2 Dual Polarity MIMO Sector Antenna that was designed to seamlessly integrate with RocketM
radios (RocketM sold separately).
Pair the RocketM’s radio with the airMAX Sector Antenna’s reach to create a powerful basestation. This versatile combination gives network architects unparalleled flexibility and convenience.
Utilize airMAX Technology*
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.Intelligent QoS Priority is given to voice/video for seamless streaming.
Scalability High capacity and scalability.
Long Distance Capable of high-speed, carrier-class links.
