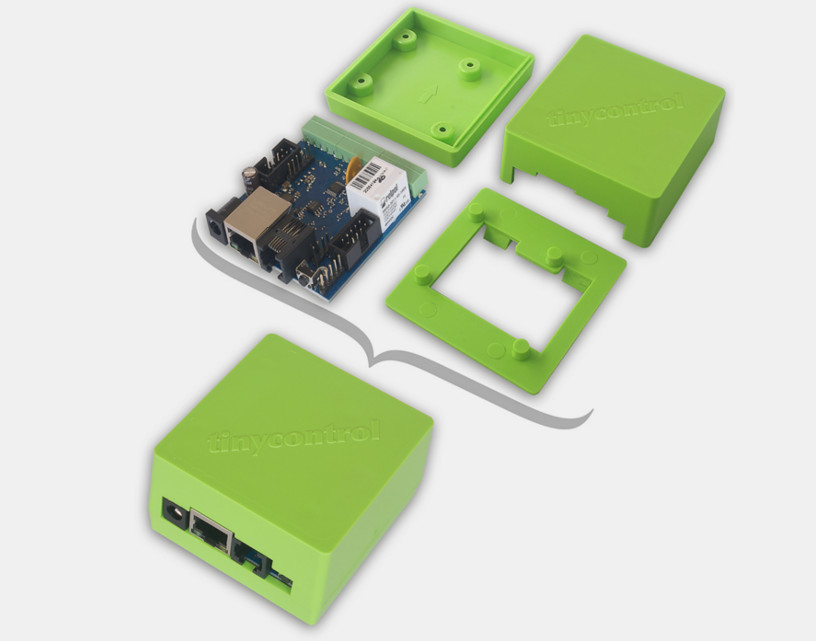

Description
The Lan Controller V 3.x is a completely new device greatly expanded functionality compared to version v2. As previous version it acts as a web server, which presents readings of various types of sensors: temperature, humidity, voltage, current, events, and allows you to control remotely up to 10 outputs. New functionality will be presented below. The device is designed and manufactured in Poland.
Admin panel – Lan Controller v3

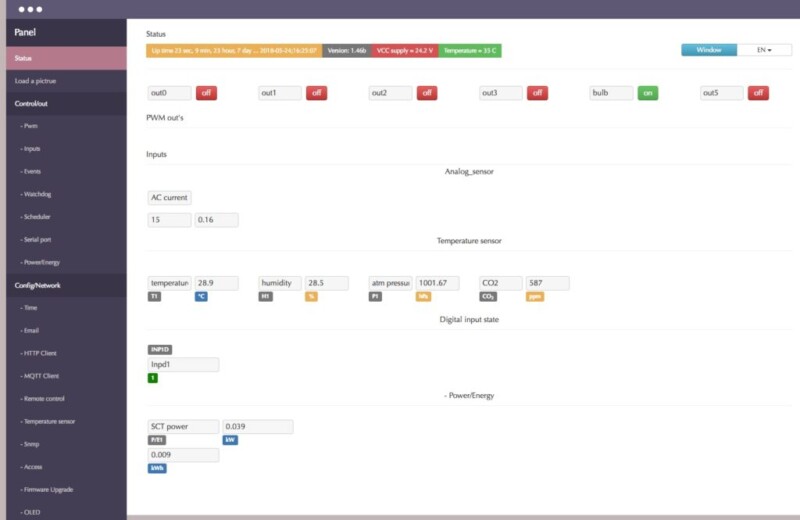

Status panel – live Lan Controller v3
Please use user/user to login and control device. You can switch on/off outputs, observe temperature, AC current and power (will change after switch bulb on) Bulb will be switched off after 60s – hidden setup.
Live view by camera on Lan Controller v3
Please use admin/admin to see live broadcast. Some browsers can be not supported.
View on chart based on data from public Lan Controller v3 on mqtt.ats.pl server.
ADVANCED HARDWARE
New version is based on 32bit processor. Thanks it interface panel is more functional and intuitive now. There has been added amplifiers for the measurement of small signals – thanks it simple and safe measurement of AC current is possible. There are also PWM outputs, for example brightness of lights or the speed of the electric motor can be controlled. For easy installation device support passive PoE. Updating the software by the user is now easier.
NEW EXTENSION
The new version also means new opportunities for expansion – apart 1wire bus read temperature same RJ12 connector support I2C port. This means that we can connect a lot of sensor and devices. For example both AM2320 and BME280 temperature/humidity sensors are supported this way, 0.96′ OLED display and real time clock. For this purpose is also a new splitter bus for 1wire with I2C. We developed new, small board of 4 relays. Splitter and PCB relays are on the base which DIN rail mounting option.
NEW COMMUNICATION PROTOCOL
In addition to used in the previous version of HTTP and SNMP to exchange data with other devices, also was added support for a new protocol MQTT. On the basis of this protocol will be available the service of remote data collection, processing and viewing data sent by Lan Controller, as well as control outputs, even when the device is behind a router.
MODERN WEB SERVER
Applied efficient 32-bit processor helped to create a modern website with high functionality using advanced tools. Drop-down menu, functional graphics, sliding boxes and buttons decide for comfortable use. All data are presented on main Status which is easy configurable – you can enable and disable the visibility of components and load your background. It creates great opportunities for configuration and application for advanced users who want to customize the controller to suit your requirements. Common with 2-way login options: admin or user which can display only Status page -it give great tool for creating device for very different purposes.
WATCHDOG
For users or network operators can’t miss watchdog function, which was core of our early designed controllers. In this version support 6 outputs and a lot of setup options.
ARAY OF EVENTS
The new version has a more extensive feature programming activities at the fulfillment of the condition on one of the sensors. Now we can check conditions at the same time on two inputs and set the Boolean operator when the output is to be driven. We can easily configure and add new lines of our “program.”
SCHEDULER
Scheduler can be useful for many applications. Allows switch on/off outputs according to the set time. New in v3 is also virtual output EVNT. We can use it as a condition in the array of events, simply by programming in this way, time and circumstances of the inclusion of the event. New look scheduler makes it easier to use, provides extensive capabilities to set not only on the day of the week but on a specific date in a year.
MQTT SERVER MQTT.ATS.PL
It is our proprietary solution complements functionality of Lan Controller v3.
Access is free for non-professional users up to 5 devices.
Server is intended for 5 core function (for this moment):
– collecting data coming from Lan Controller sensors and present them on charts: Charts, Listings
– setting filters for incomings data for purpose of sending MQTT topics: Format/Filter/Topic (for example for controlling out’s of one device based on sensor readings of other Lan Controller),
– control outputs according to big capacity Scheduler: Configure tasks,
– control outputs according to events: Configure reactions,
– control of Lan Controller from smartphone app or website – function work properly independently from place in network.
Ultimately server will support other devices which use MQTT protocol like GSM controller.
ANDROID APP
Simple application for mobile phone with Android system significantly extends the possibilities of use Lan Controller v3. Each moment we can check our sensor value or switch on/off output.
Idiomatic icon are representing typical sensors and red/green colour of switch – identical as on Lan Controller webpage help in usage.
