Description

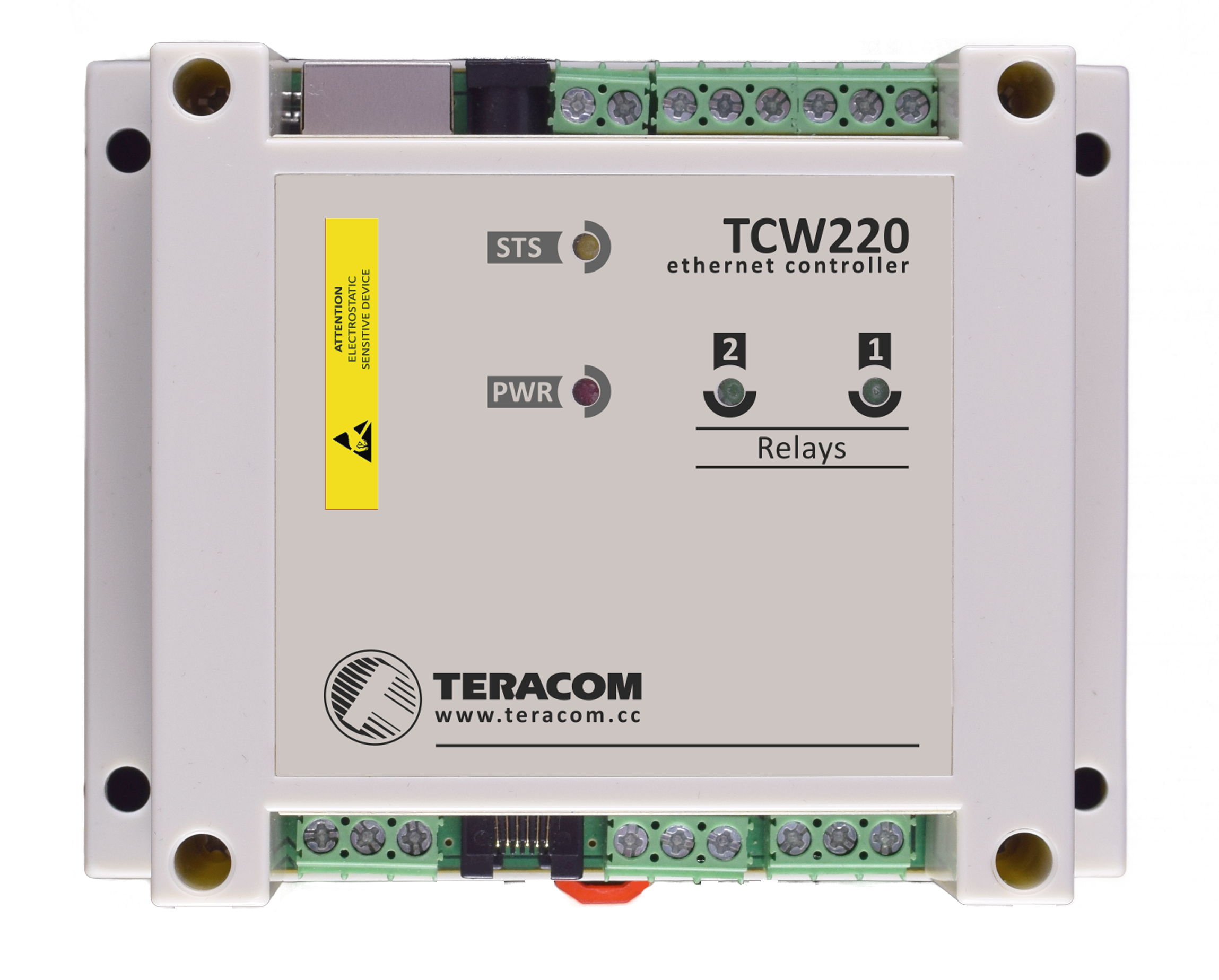

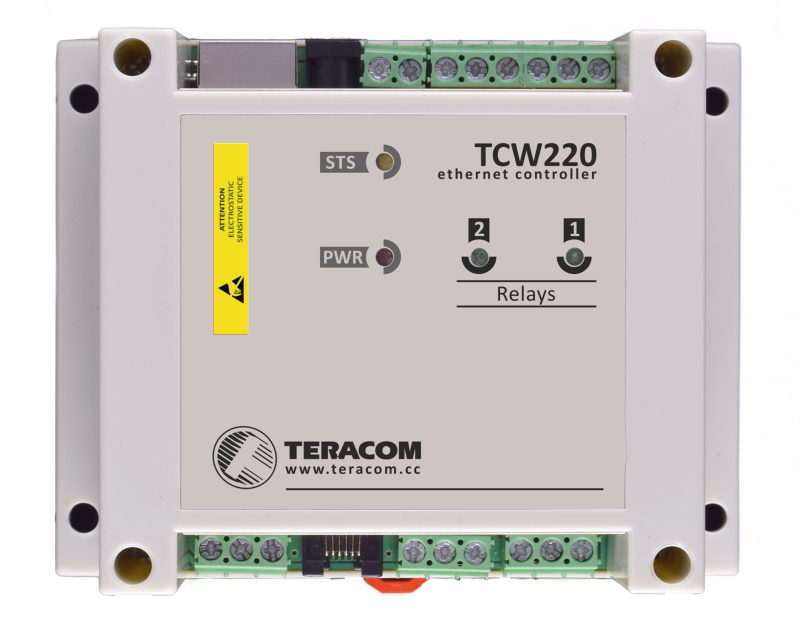

Teracom SNMP Ethernet Controller TCW220

TCW220 is an Ethernet data logger for general data acquisition applications. It has 2 analog inputs, with 10-bit resolution and 2 discrete inputs.It utilizes 1-Wire interface for up to 8 Teracom 1-Wire sensors – carbon dioxide, 0/20mA, AC/DC current, temperature, humidity etc.) The Ethernet data logger also has 2 relays with normally open and normally close contacts.

All monitored parameters can be logged on previous set time interval and/or on alarm condition. The memory is large enough for at least 36 days with records on every 1 minute. Log file can be periodically uploaded on dedicated server by HTTP Post.

XML/JSON file with all monitored parameters can periodically uploaded on dedicated server by HTTP Post. Like answer server can return commands for relay’s control. This is a way for building SCADA system.

The relays can be activated either remotely (WEB, SNMP, HTTP, MODBUS etc.) or locally – from status of monitored parameters. For every parameter e-mails and SNMP traps for up to 5 recipients can be sent. Alarm alert also can be sent by HTTP Post with XML/JSON status files.



Features

– Ethernet data logger functionality for at least 36 days;

– Password protected web based configuration and control;

– 2 digital inputs with ” dry contact” and “logic level” modes;

– 2 analog inputs with 0 to 10VDC range, with 10-bit resolution;

– Multiplier and offset for analog inputs;

– 2 relays with NO and NC contacts;

– 1-Wire interface for up to 8 Teracom sensors;

– SNMP v.2 support;

– SNMP traps to up to 5 recipients like alarm alert;

– MODBUS support;

– 2K SSL support;

– e-mails to up to 5 recipients like alarm alert;

– XML/JSON status files;

– HTTP API commands;

– NTP support;

– Periodical HTTP Post for client-server systems;

– Remote firmware update.

Typical applications

The big number of supported protocols and functionality makes Ethernet data logger good choice for various application such as:

– Stand alone or system ethernet data logger;

– Industrial process automation;

– Industrial environmental monitoring;

– Mushroom and winery environmental monitoring and control;

– Heaters or coolers control;

– Small to large SCADA systems;

– Ethernet data logger for storage facilities.
