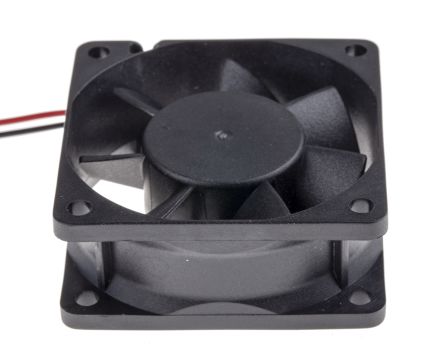

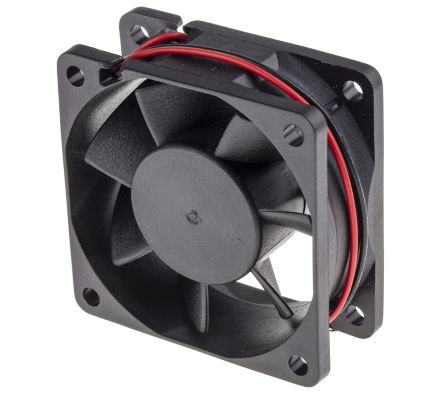

RS PRO Axial Fan, 60 x 60 x 25mm, 24cfm, 2.8W, 12 V dc

SKU: 1011601100110 Categories: , ,

19.67

RS PRO – Axial Fan – PBT Thermoplastic casing • Square orientation • Can be mounted in a horizontal and vertical position • Low noise levels • Smooth and efficient air flow

Out of stock

Description

Product Details

RS Pro DC Brushless Axial Fans

Brought to you by RS Pro, these axial fans are a perfect choice for cooling applications. With a fully integrated electronic commutation, this axial fan provides a durable and smooth airflow to the device it is cooling. Establishing the relevant axial fan needed, the RS Pro series of DC Brushless fans are designed to be up there with the best. All models are highly reliable and excellent quality.

Features and Benefits

• PBT Thermoplastic casing
• Square orientation
• Can be mounted in a horizontal and vertical position
• Low noise levels
• Smooth and efficient air flow

How noisy are these fans?

Due to the low decibel levels these Axial Fans produce, they are non-intrusive in quitter environments. As an example, a whisper would register as 30 dB, the highest decibel level of this entire RS Pro range would register at 51 dB, the lowest being 18. Meaning these can be classed as whisper quiet.

What are axial fans?

Axial fans are a type of fan used within everyday applications, such as air conditioners and computers. They cause both air and gas (depending on the application) to flow directly through it in an axial direction. Allowing the air/gas flow to be axial and both entry and exit. You would find RS Pro axial fans used in everyday devices, such as fridges, engines and PCs.

What is a brushless motor?

A standard brushed motor uses carbon brushes, ring magnets, armatures and commutators. The RS Pro Brushless series takes away all of those components. Leaving a lightweight, durable and smooth performing axial fan. Helping contribute to cost saving and eliminating possible item weight issues.

Does this fan use ball bearings or sleeve bearings?

This axial fan uses ball bearings. Ball bearings are usually the most common choice within axial fans. this is mainly due to their reputation of an excellent service life, ball bearing fans are known to run at full speed with no interruptions for many years. If your axial fan needs to be mounted in a positions where the blades are facing in an awkward direction, ball bearing internals mean the fan can be mounted in any axial position.




Approvals

UL, cUL, TUV, CE



Specifications
Attribute Value
Supply Voltage 12 V dc
Dimensions 60 x 60 x 25mm
AC or DC Operation DC
Height 60mm
Width 60mm
Power Consumption 2.8W
Depth 25mm
Maximum Current 230mA
Air Flow 24cfm
Noise Level 33dB
Fan Speed 4500rpm
Static Pressure 0.25in/H2O
Bearing Type Ball
Fan Housing Shape Square
Termination Type Lead Wire
Series OD6025
Special Features Auto Restart, Brushless, Locked Rotor Protected, Polarity Protected
Direction of Curve Backward

Additional information

Weight 0.3000 kg
Brand

RS PRO

Applications

Indoor
