Description

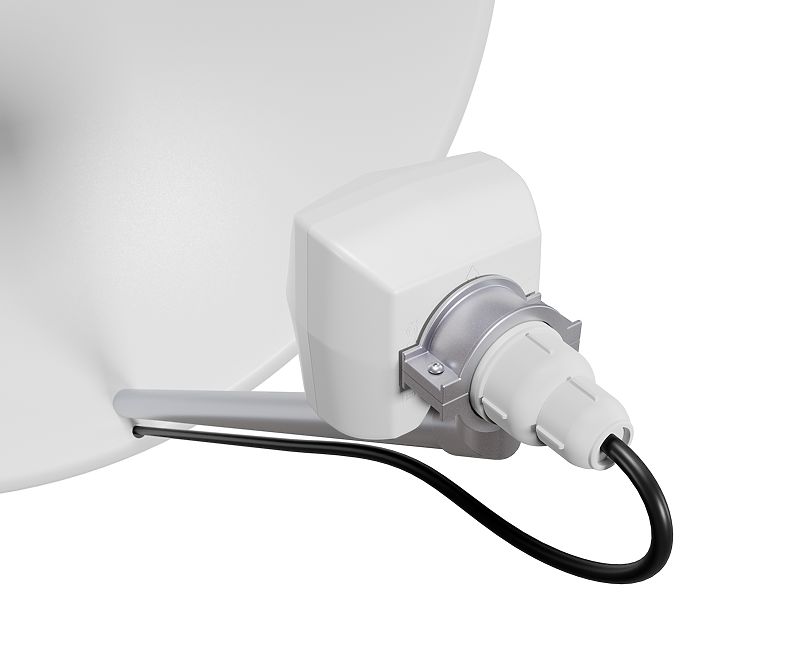

LDF LTE6 kit is a device for extremely remote locations that are within cellular network coverage. Attach it to any satellite TV dish (NOT included) and the dish will act as a reflector, greatly amplifying the signal. Using large enough dishes, it is possible to obtain antenna amplification of 30 dBi or more. That means – Internet connectivity is possible even in areas, where you would usually have no mobile connectivity at all. Stormy weather is not a problem either – with a solid IP68 rating LDF LTE6 kit can withstand dust, dirt and sand, as well as temporary immersion in water. LDF LTE6 kit features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness andhigher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6.
Specifications
| Details |
| Product code |
RBLDFR&R11e-LTE6 |
| Architecture |
MIPSBE |
| CPU |
QCA9Mikrotik Technical Support1 |
| CPU core count |
1 |
| Dimensions |
94 x 94 x 150 mm |
| License level |
3 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-30°C to 60°C |
Powering
| Details |
| PoE in |
802.3af/at |
| PoE in input Voltage |
12-57 V |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
6 W |
Mobile
| Details |
| 2G Category |
Class12 |
| 2G bands |
2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| 3G Category |
R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands |
1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category |
6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| LTE FDD bands |
1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 12 (700MHz) / 17 (700MHz) / 20 (800MHz) / 25 (1900MHz) / 26 (850MHz) |
| LTE TDD bands |
38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) / 41n (2500MHz) |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
Peripherals
| Details |
| MiniPCI-e slots |
1 |
Other
Certification & Approvals
| Details |
| Certification |
CE/RED, EAC, ROHS |
Included parts
