Description

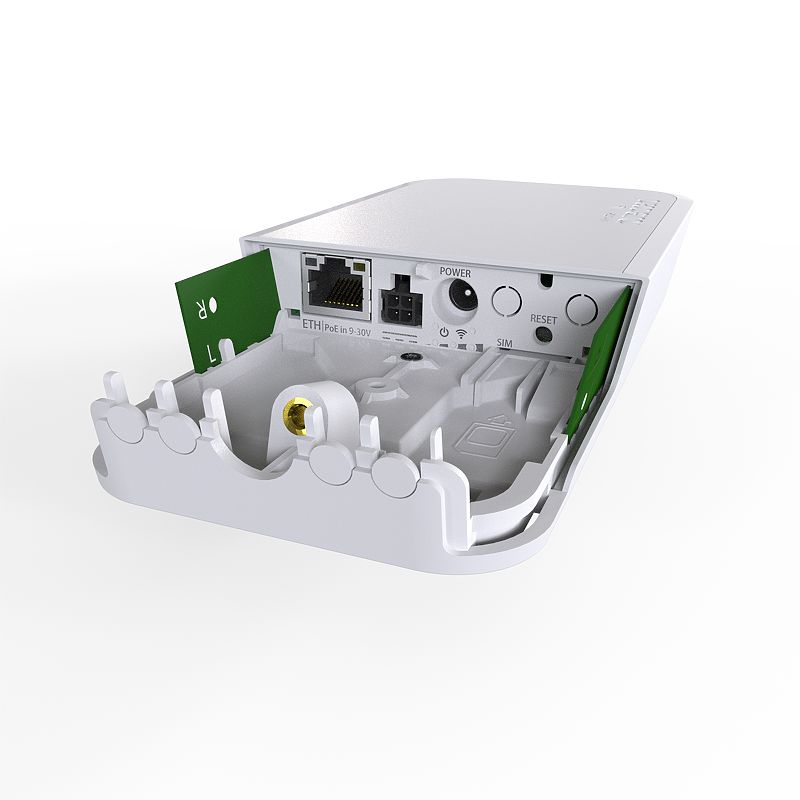

The wAP 4G kit s a small weatherproof wireless access point with a built in cellular modem that supports 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The wAP LTE also has one 10/100 Ethernet LAN port for your wired devices.
LTE cards are connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for larger coverage. Unit has the several powering options – 9-30v PoE-in by Ethernet port, DC jack and Automotive connector, very handy in mobile devices like car, bus or train.
RBwAPR-2nD&R11e-4G includes LTE modem that supports LTE bands FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).
If you wan a similar product with
2G, 3G and
LTE connectivity look for
wAP LTE kit
Specifications
| Details |
| Product code |
RBwAPR-2nD&R11e-4G |
| Architecture |
MIPSBE |
| CPU |
QCA9Mikrotik Technical Support1 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
185 x 85 x 30 mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 60°C |
| Suggested price |
$129.00 |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
9-30 V |
| Number of DC inputs |
3 (PoE-IN, Automotive, DC jack) |
| DC jack input Voltage |
9-30 V |
| Automotive input Voltage |
9-30 V |
| Max power consumption |
8 W |
Mobile
| Details |
| LTE Category |
4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands |
3 (1800MHz) / 7 (2600MHz) / 20 (800MHz) / 31 (450MHz) |
| LTE TDD bands |
41n (2500MHz) / 42 (3500MHz) / 43 (3700MHz) |
Wireless
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
Peripherals
| Details |
| Number of SIM slots |
1 Modem (Mini SIM) |
| MiniPCI-e slots |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
22 |
-96 |
| 11MBit/s |
22 |
-89 |
| 6MBit/s |
20 |
-93 |
| 54MBit/s |
18 |
-74 |
| MCS0 |
20 |
-93 |
| MCS7 |
16 |
-71 |
