Description

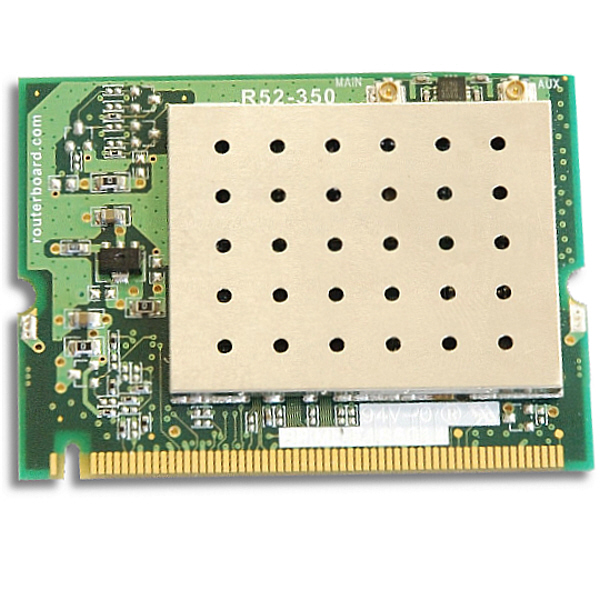

R52H
MikroTik introduces the R52H wireless 802.11a+b+g miniPCI card for multiband high speed applications, with up to 350mW output power. It works on 2.192-2.Mikrotik Technical Support9 and 4.920-6.100GHz frequency range and supports Turbo mode for faster transfers. The card performs best when coupled with the MikroTik RouterOS.
R52H is optimized to work with MikroTik Nstreme protocol to reach extra long distances at a great speed. The Nstreme protocol is MikroTik proprietary wireless protocol created to overcome speed and distance limitations of IEEE 802.11 standards and to extend point-to-point and point-to-multi point wireless link performance. The new Nstreme-dual protocol designed to provide real full-duplex communications over wireless with a pair of wireless cards – one for transmitting data and one for receiving.
Card has two U.fl connectors for external antennas
Product specifications
| Details | |
|---|---|
| Product code | R52H |
| 802.11a | Yes |
| 802.11b | Yes |
| 802.11g | Yes |
| Connector | uFl |
| Format | miniPCI |
| Chipset | AR5414 |
| Output power | 25dBm |
| 2GHz | Yes |
| 5GHz | Yes |
| 802.11 Turbo mode support | Yes |
| Operating Temperature | -50℃ to +70℃ |
