Description

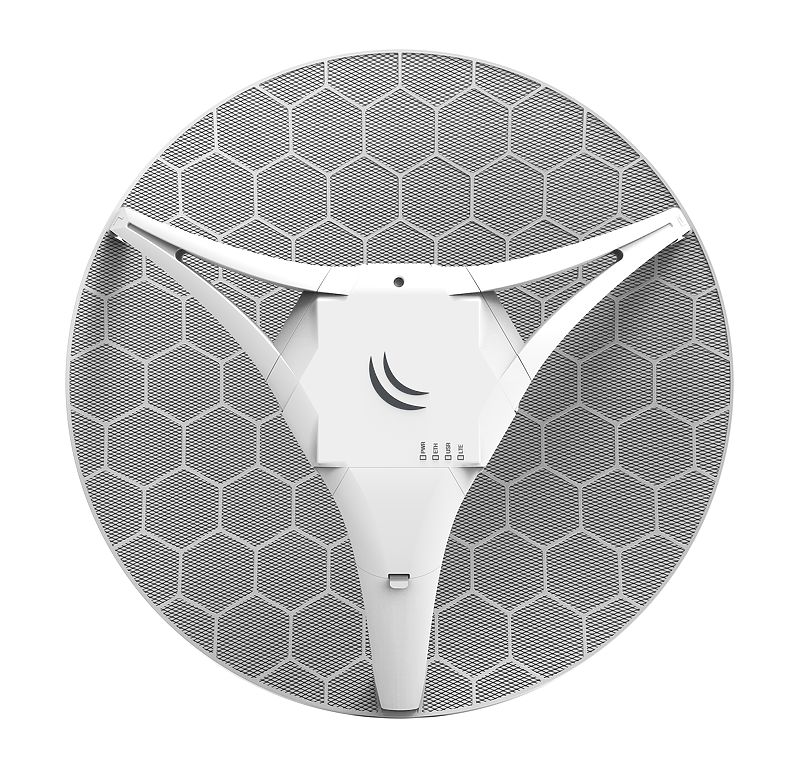

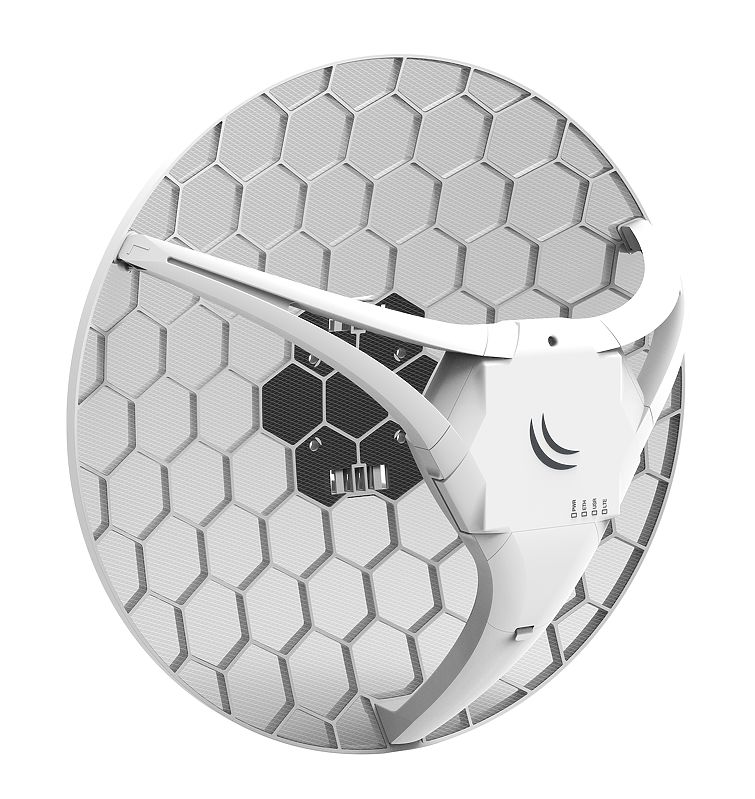

The LHG LTE kit is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.
The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.
RBLHGR&R11e-LTE includes LTE modem that supports International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40.
Specifications
| Details | |
|---|---|
| Product code | RBLHGR&R11e-LTE |
| Architecture | MIPSBE |
| CPU | QCA9Mikrotik Technical Support1 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 391 x 391 x 227 mm |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 60°C |
| Suggested price | $159.00 |
Powering
| Details | |
|---|---|
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 6 W |
Mobile
| Details | |
|---|---|
| 2G Category | Class12 |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands | 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
