Description
PC Engines case1d2u ENCLOSURE FOR apu1d, apu1d4, alix2 / alix6 series
| case1d2u | Enclosure 3 LAN USB black |
|---|---|
| Status | active |
| Part numbers | case1d1u = 2 LAN, 3 SMA, USB, plain anodized case1d1redu = 2 LAN, 3 SMA, USB, red anodized case1d1blku = 2 LAN, 3 SMA, USB, black anodized or painted case1d2u = 3 LAN, 2 SMA, USB, plain anodized case1d2redu = 3 LAN, 2 SMA, USB, red anodized or painted case1d2bluu = 3 LAN, 2 SMA, USB, blue anodized case1d2blku = 3 LAN, 2 SMA, USB, black anodized or painted |
| Use with | alix2 / alix6 series (2 LAN / 3 LAN), apu1 and apu2 series boards (3 LAN) brk1d (wall mount bracket) pigsma (SMA reverse pigtail) pigsmaf (SMA female pigtail) pigsmaf (MMCX SMA reverse pigtail) |

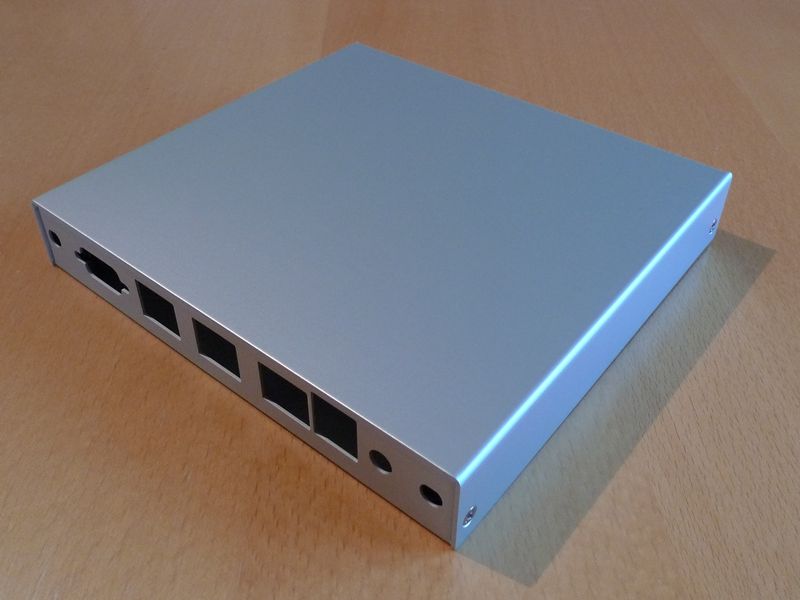

| Spec | Enclosure designed for ALIX.2* boards. Cutouts for 3 LEDs and 1 switch in front, cutouts for DB9, 2 or 3 LAN, 3 or 2 SMA connectors, DC jack in back. Enclosure made of anodized or painted aluminum. Dimensions 168 mm wide x 157 mm deep x 30 mm high. RoHS compliant. |
| Changes from case1c* |
|
| Includes | 4 screws to mount system board, 4 screws to close enclosure, 4 self-adhesive feet, 2 or 3 rubber plugs to close unused SMA holes. |
| Assembly notes | Tools needed: Phillips screw driver, 5 mm or 3/16″ nut driver. Remove hex nuts from DB9 connector of ALIX board. Mount ALIX board in enclosure, then fasten all screws and hex nuts. CF card can be secured with Kapton tape to the CF socket, or a strip of elastic rubber (e.g. sealing strip for windows) on the inside of the top cover. For apu boards, also seeinstructions on heat spreader installation. |
| Customization | Customer silk screen, custom paint colors etc. are possible for volume orders. |
| Manufacturer | PC Engines |
| Origin | China |
