Description

Parabolic antenna JRC-29 EXTREM

– excellent parabolic antenna for demanding users for very difficult conditions
– direction links for medium and long distance for safety connection
– extra high front to back ratio
– metallic collar assures increased isolation between antenna on mast = lower interference between links
– increased rezistance against interference from sides and behind
– all-metal construction, parabola made of aluminium alloy

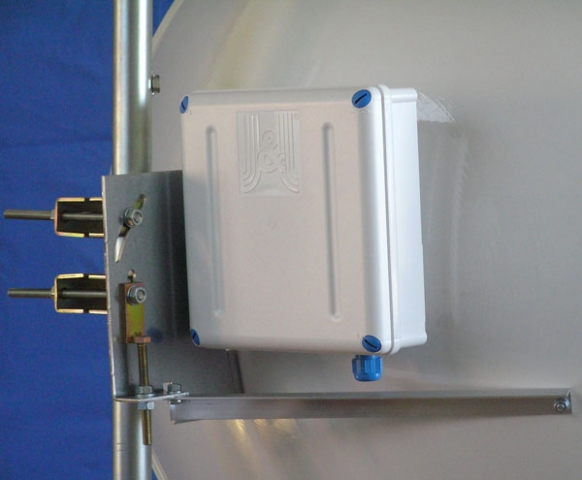

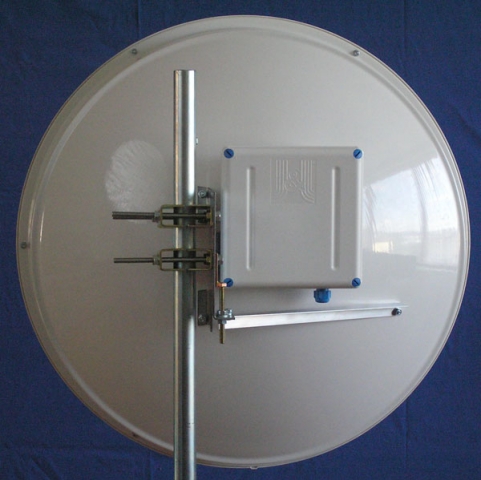

– holder is prepared for instalation of GentleBOX JR-200, the connector leads into it directly

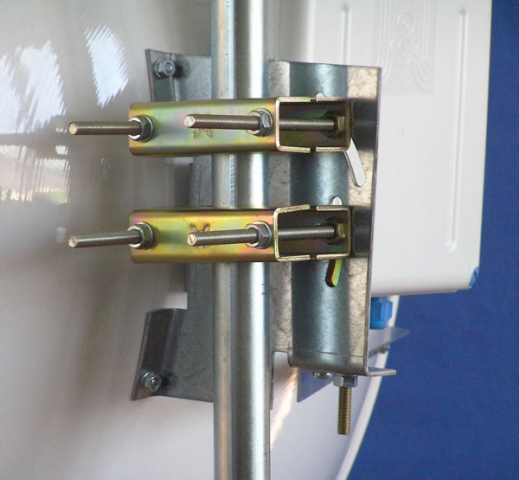

– setting elevation (of gradient) and azimuth has independent adjustment

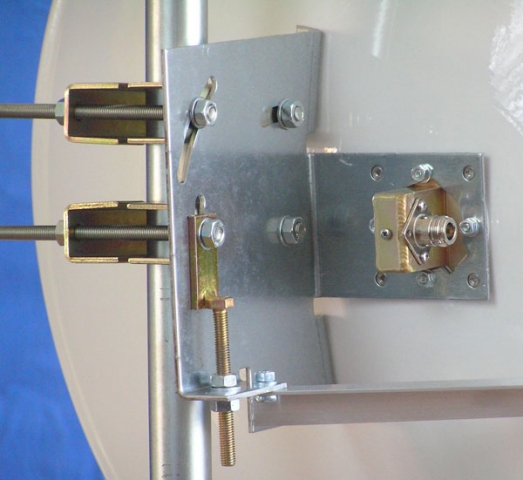

– exact and comfortable adjustment of elevation by setting screw
– VSWR is measured during the manufacture of every piece
– outdoor usage

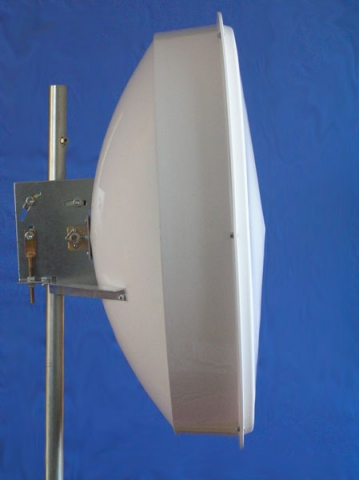

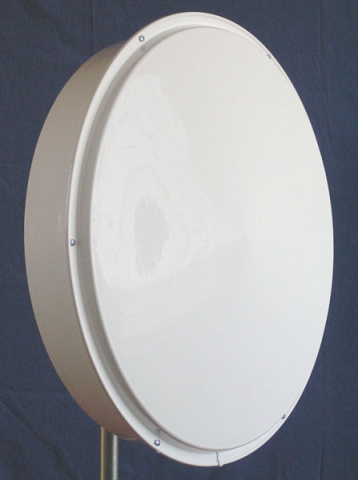

– you can count attainable distance from section of calculation– radom (plastic parabola cover) for each antenna free!

Frequency range 5,0 – 5,95 GHz

Gain 28,4 ± 0,5 dBi

VSWR_{5,45-5,85 GHz ≤ 1,5}

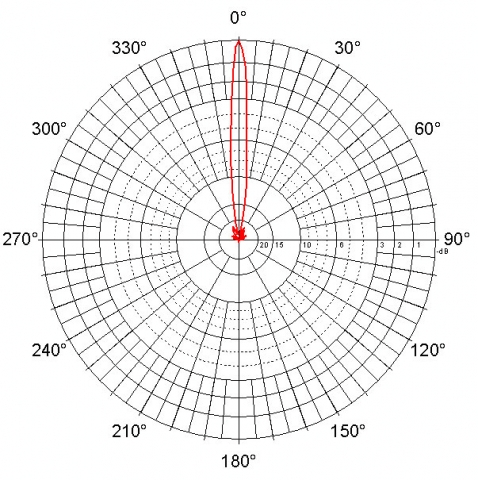

Beamwidth_{-3 dB 5,8°}

Connector N – Female

Polarization horizontal or vertical according to radiator position

Parabola ø 65 cm aluminium alloy with baking colour

Cover UV steady plastic ABS

instalation for mast ø 27 – 74 mm

The radiator is internally treated by high frequency technology “Hydrophobic coating” which increases resistance against humidity.
