Description
SXT HG5 ac (RBSXTG-5HPacD-HG) is EOL. Direct replacement is SXTsq 5 ac, which also has a Gigabit Ethernet port, 802.11ac support and a much better price.

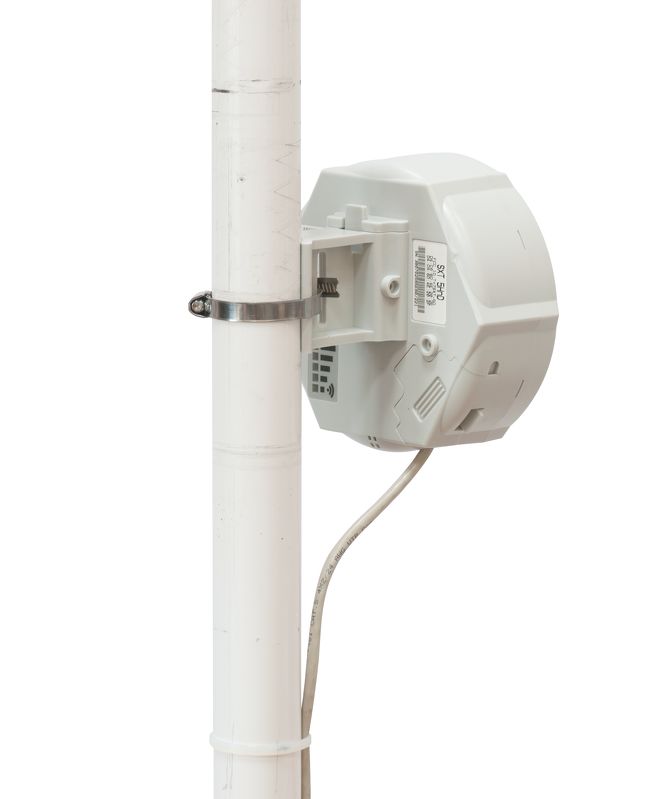

SXT HG5 ac
The new High Gain version of our popular SXT G 802.11a/n/ac model, equipped with an improved 5GHz 17dBi 24 degree antenna, Gigabit Ethernet port and RouterOS L4 license.
Like all our SXT units, this is a neat and compact outdoor device that comes with all necessary accessories included. Use it as a wireless AP, for point to point, or as a CPE unit. 802.11ac technology provides data rates up to 866Mbit, but is also backwards compatible with 802.11a/n.
The SXT HG supports 10-57V 802.3af/at and passive PoE power input.
– RBSXTG-5HPacD-HG-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
– RBSXTG-5HPacD-HG (International) supports 5150MHz-5875MHz range.
Product specifications
| Details | |
|---|---|
| Product code | RBSXTG-5HPacD-HG |
| 10/100/1000 Ethernet ports | 1 |
| Antenna gain | 17 |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 140x140x105mm. Weight without packaging, adapters and cables: 265g |
| License level | 4 |
| Max Power consumption | 12W |
| Number of USB ports | 1 |
| Number of chains | 2 |
| Operating System | RouterOS |
| PCB temperature monitor | Yes |
| PoE in | 802.3at |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Supported input voltage | 10 V – 57 V |
| USB slot type | USB type A |
| Voltage Monitor | Yes |
| Wireless chip model | QCA9892 |
| Wireless standards | 802.11a/n/ac |
| Suggested price | $119 |
Wireless specifications
| 5 GHz | |||
|---|---|---|---|
| Transmit power (dBm) | Receive Sensitivity | Transmit power (mW) | |
| 6MBit/s | 31 | -96 | 1259 |
| 54MBit/s | 28 | -81 | 631 |
| MCS0 | 30 | -96 | 1000 |
| MCS7 | 27 | -77 | 501 |
| MCS9 | 22 | -72 | 158 |
wireless parameters may be limited in software, depending on your local regulatory limitations
Ethernet test results
| RBSXTG-5HPacD-HG | QCA9557 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.2 | 986.1 | 234.9 | 962.2 | 477.7 | 244.6 |
| Bridging | 25 bridge filter rules | 81.2 | 986.1 | 118.4 | 485.0 | 119.5 | 61.2 |
| Routing | none (fast path) | 81.2 | 986.1 | 234.9 | 962.2 | 408.2 | 209.0 |
| Routing | 25 simple queues | 81.2 | 986.1 | 158.3 | 648.4 | 165.8 | 84.9 |
| Routing | 25 ip filter rules | 64.8 | 786.9 | 70.4 | 288.4 | 60.9 | 31.2 |
