Description
MikroTik RouterBoard SXTG-5HPnD-SAr2
is a low cost, high speed 5GHz outdoor wireless sector access point. It has a 90 degree antenna to provide a wider coverage than our previous SXT units.
Complete with a ready to mount enclosure and built-in 14dBi antenna, the package contains everything you need to set it up in a matter of minutes. The inside of the case is covered in special shielding to improve operation in high interference areas and antenna front to back ratio.

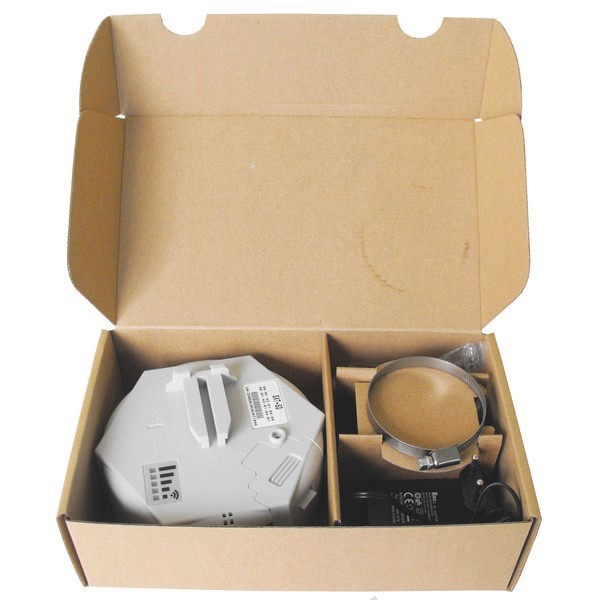

Box contains: SXT wireless device with integrated antenna, pole mounting bracket, mounting ring, PoE injector, power adapter, quick setup guide
Download SXTG-5HPnD-SAr2 datasheet.pdf
Technical details SXTG-5HPnD-SAr2
CPU speed: 600MHz
CPU cores: 1
RAM: 64
LAN ports: 1
Gigabit: Yes
MiniPCI: 0
Integrated Wireless: Yes
Wireless standards: 802.11an
USB: yes
802.3af support: No
PoE: 8-30V DC
Voltage Monitor: Yes
PCB temperature monitor: Yes
CPU temperature monitor: No
Dimensions: 140x140x56mm
Operating System: RouterOS
Temperature range: -30C .. +80C
RouterOS License: L4
Antenna gain 14dBi
Current Monitor: No
TX power: 30dBm
Max Power consumption: Up to 7W
SFP ports: No
