Description

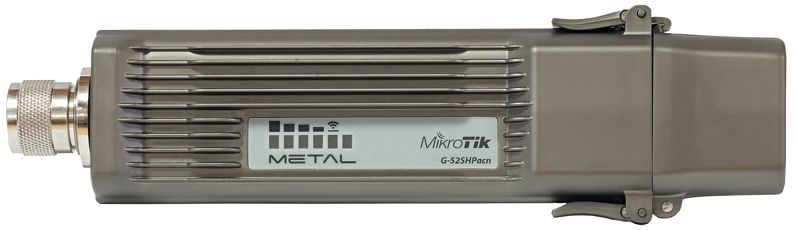

MikroTik RouterBoard RB/METALG – 52SHPacn METAL 52 ac
Metal 52 ac
Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up 80 MHz wide channel). The new Gigabit port will help you utilize the full benefit of 802.11ac high speed wireless.
The Metal 52 ac supports 2.4GHz, 5GHz and all the legacy wireless modes as well (802.11 b/g/n for 2.4GHz and 802.11 ac/n/a for 5GHz).
We have two versions available.
– RBMetalG-52SHPacn-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
– RBMetalG-52SHPacn (International) supports 2412-2484MHz and 5150MHz-5875MHz range.
Product specifications
Details | |
---|---|
Product code | RBMetalG-52SHPacn |
CPU nominal frequency | 720 MHz |
CPU core count | 1 |
Size of RAM | 64 MB |
10/100/1000 Ethernet ports | 1 |
Wireless standards | 802.11b/g/n |
Wireless chip model | QCA-9889 |
Supported input voltage | 10 V – 30 V |
PoE in | Yes |
Voltage Monitor | Yes |
PCB temperature monitor | Yes |
Dimensions | 215x60x38mm |
Operating System | RouterOS |
Operating temperature range | -40°C .. +70°C tested |
License level | 4 |
CPU | QCA9556 |
Max Power consumption | 11W |
Number of chains | 1 |
Storage type | FLASH |
Storage size | 16 MB |
Suggested price | $119 |
Wireless specifications
5 GHz | ||
---|---|---|
TX | RX | |
6MBit/s | 31 | -93 |
54MBit/s | 27 | -78 |
MCS0 | 30 | -93 |
MCS7 | 26 | -74 |
MCS9 | 22 | -69 |
2.4 GHz | ||
TX | RX | |
1MBit/s | 31 | -97 |
11MBit/s | 31 | -91 |
6MBit/s | 31 | -93 |
54MBit/s | 28 | -77 |
MCS0 | 31 | -93 |
MCS7 | 27 | -72 |
wireless parameters may be limited in software, depending on your local regulatory limitations
