Description

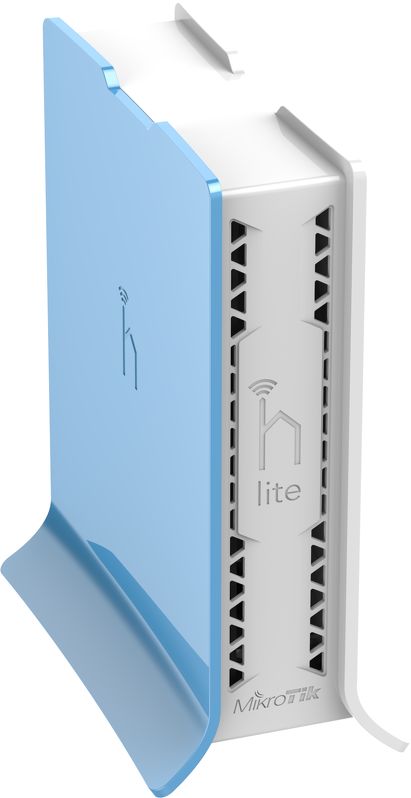

The home Access Point lite (hAP lite) is an ideal little device for your apartment, house or office.
It supports button triggered WPS, for the convenience of not typing a complicated password when somebody wants to have wireless internet access, and can also be told to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button.
Of course, the device runs RouterOS with all the features, bandwidth shaping, firewall, user access control and many others.
The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports and a RouterOS L4 license. USB power supply is included.
Specifications
| Details | |
|---|---|
| Product code | RB941-2nD-TC |
| Architecture | SMIPS |
| CPU | QCA9Mikrotik Technical Support3 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 32 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -20°C to 70°C |
| Suggested price | $21.95 |
Powering
| Details | |
|---|---|
| MicroUSB input Voltage | 5-5 V |
| Number of DC inputs | 1 (MicroUSB) |
| Max power consumption | 3.5 W |
Wireless
| Details | |
|---|---|
| Wireless 2.4 GHz number of chains | 2 |
| Antenna gain dBi for 2.4 GHz | 1.5 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 4 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
