Description

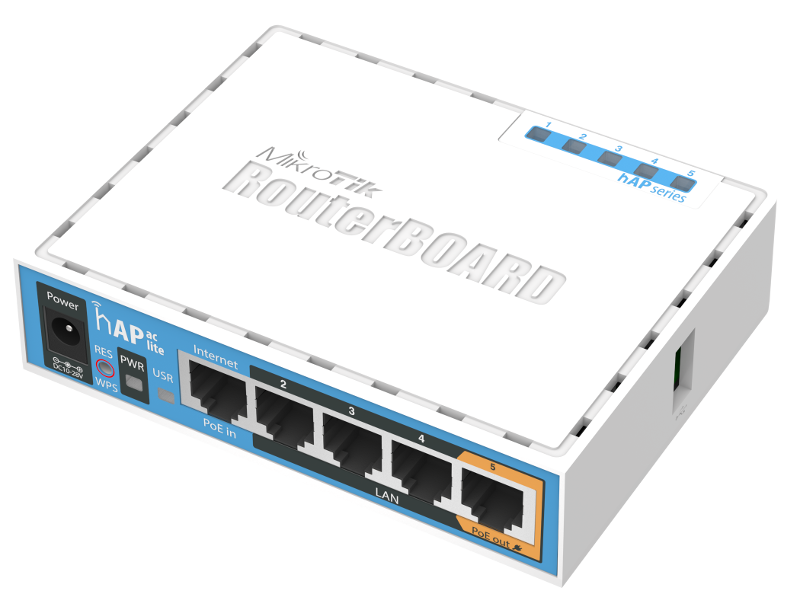

The hAP ac lite is a Dual-concurrent Access Point, that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time.
Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.
We have one version available.
RB952Ui-5ac2nD (International) supports 2412-2484MHz and 5150MHz – 5875MHz range (Specific frequency range can be limited by country regulations).
Specifications
| Details | |
|---|---|
| Product code | RB952Ui-5ac2nD |
| Architecture | MIPSBE |
| CPU | QCA9Mikrotik Technical Support1 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 113 x 89 x 28mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -30°C to 70°C |
| Suggested price | $49.95 |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE out | Passive PoE |
| PoE in input Voltage | 12-30 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-30 V |
| Max out per port output (input < 30 V) | 500 mA |
| Max total out (A) | 500 mA |
| Max power consumption | 8 W |
Wireless
| Details | |
|---|---|
| AC speed | AC750 |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Wi-Fi generation | 5 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz Max data rate | 433 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz chip model | QCA9Mikrotik Technical Support1 |
| Wireless 5 GHz number of chains | 1 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2 |
| Wireless 5 GHz chip model | QCA9887 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 5 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 23 | -93 |
| 54MBit/s | 20 | -75 |
| MCS0 | 23 | -93 |
| MCS7 | 19 | -71 |
| MCS9 | 16 | -63 |
