Description

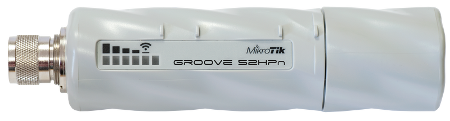

MikroTik RouterBoard Groove 52PHn
is the smallest outdoor series model – a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high 500mW output power! With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible!
It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.
Box contains: Groove unit, mounting loops, PoE injector, power adapter.
Download RB Groove 52PHn datasheet.pdf
Video Unboxing MikroTik RouterBoard Groove 52HPn
Technical Details Groove 52PHn
Product code: RBGroove-52HPn
CPU speed: 600MHz
CPU cores: 1
RAM: 64MB
LAN ports: 1
Gigabit: no
MiniPCI: 0
Integrated Wireless: Yes
Wireless standards: 802.11a/b/g/n
PoE: 9-30V
Voltage Monitor: No
PCB temperature monitor: No
CPU temperature monitor: No
Dimensions: 177x44x44mm, 193g
Operating System: RouterOS
Temperature range: -30C to +70C
RouterOS License: L3
Current Monitor: No
TX power: 27dBm
CPU: AR9342
Max Power consumption: Up to 0.19A at 24V (4.56W)
