Description

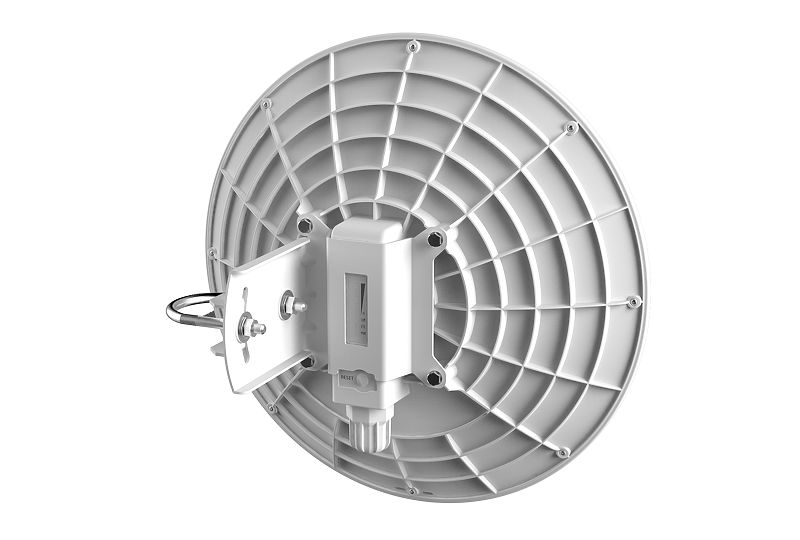

Mikrotik RouterBoard DYNADISH G-6HnD
IMPORTANT! Product is available for 5.9-6.4GHz license holders only, it is NOT for unlicensed ISM bands!
In order to be able to order DynaDish 6, customer has to send you license (document) that proves he is able to legally use the product.
DynaDish 6
Ideal for long distance point-to-point links
The Dynadish 6 uses the same effective antenna design and enclosure as our successful 5 GHz model, but this new device operates in the licensed 6GHz frequency. This means less interference than the often saturated 5 GHz frequencies for higher speed and more reach. By operating above the most popular WiFi frequencies you are now able to build your wireless links from busy towers without suffering problems with noise.
It is a simple and completely integrated product with everything you need to quickly install a reliable point to point link.
DynaDish 6
• 5.9 – 6.4 GHz dual chain board integrated into a 25 dBi dish antenna
• precision mounting kit included
• one Gigabit Ethernet port
The antenna is a 25 dBi dish, and it includes a precise alignment mount, ideal for long range (up to 25 km at full speed) point to point wireless links.
Product specifications
Details | |
---|---|
Product code | RBDynaDishG-6HnD |
10/100/1000 Ethernet ports | 1 |
Antenna gain | 25 |
CPU | AR9344 |
CPU core count | 1 |
CPU nominal frequency | 600 MHz |
Dimensions | Ø 404 mm, |
License level | 4 |
Max Power consumption | 10W |
Number of chains | 2 |
Operating System | RouterOS |
PCB temperature monitor | Yes |
PoE in | Passive PoE |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -40 to 70° C |
USB Power Reset | Yes |
Voltage Monitor | Yes |
Wireless 6 GHz chip model | AR9344 |
Wireless 6 GHz standards | 802.11a/n |
Suggested price | $179 |
Wireless specifications
6 GHz | |||
---|---|---|---|
Transmit power (dBm) | Receive Sensitivity | Transmit power (mW) | |
6MBit/s | 30 | -93 | 1000 |
54MBit/s | 27 | -80 | 501 |
MCS0 | 29 | -93 | 794 |
MCS7 | 24 | -76 | 251 |
