Description

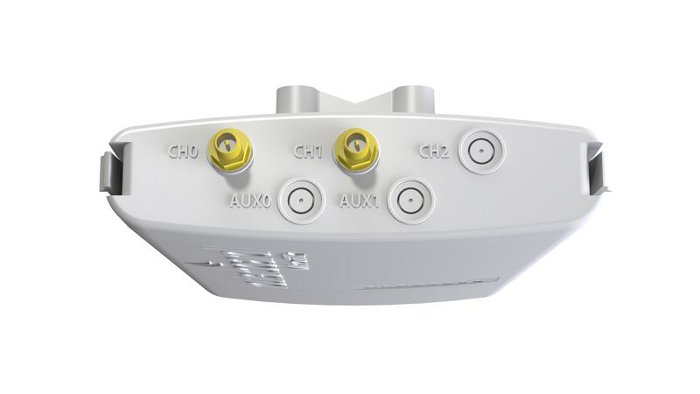

The RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual band device.
The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.
Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector
and power supply unit.
Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount
– RB912UAG-5HPnD-OUT (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications
| Details |
| Product code |
RB912UAG-5HPnD-OUT |
| Architecture |
MIPSBE |
| CPU |
AR9342 |
| CPU core count |
1 |
| CPU nominal frequency |
600 MHz |
| Dimensions |
246x135x50mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
128 MB |
| Storage type |
NAND |
| Tested ambient temperature |
-40°C to 70°C |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
8-30 V |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
12 W |
Wireless
| Details |
| Wireless 5 GHz standards |
802.11a/n |
| Wi-Fi generation |
4 |
| Wireless 5 GHz Max data rate |
300 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz chip model |
AR9342 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
1 |
Peripherals
| Details |
| Number of SIM slots |
1 Modem (Mini SIM) |
| MiniPCI-e slots |
1 |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Wireless specifications
| 5 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s |
30 |
-96 |
| 54MBit/s |
27 |
-78 |
| MCS0 |
30 |
-96 |
| MCS7 |
26 |
-75 |
