Description

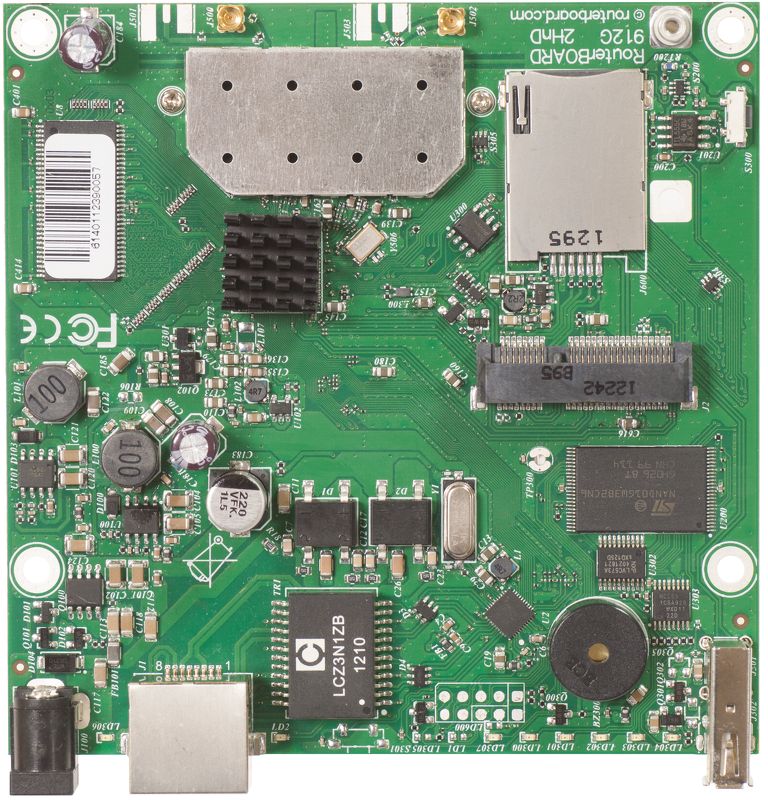

The RB912UAG-2HPnD is a very versatile device. It is a small wireless router with an integrated 2.4GHz high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.
It has built in 16kV ESD protection on both the Ethernet and the MMCX ports.
Specifications
| Details | |
|---|---|
| Product code | RB912UAG-2HPnD |
| CPU | AR9342 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 105x105mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $79.00 |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 13.5 W |
Wireless
| Details | |
|---|---|
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Wi-Fi generation | 4 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz chip model | AR9342 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 30 | -100 |
| 11MBit/s | 30 | -94 |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -78 |
| MCS0 | 30 | -96 |
| MCS7 | 24 | -73 |
