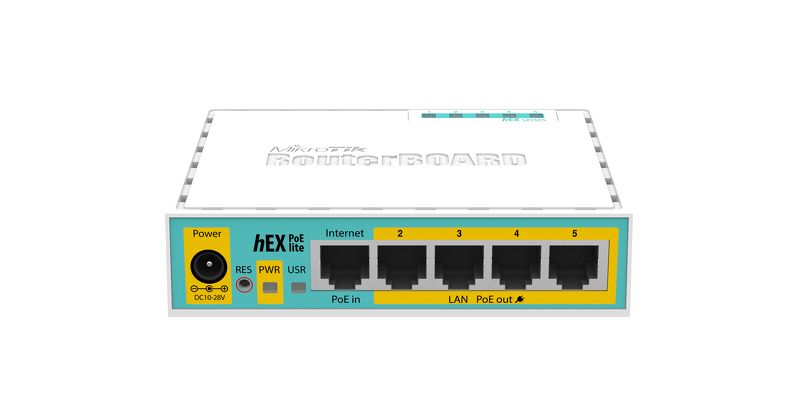

hEX PoE lite is a small five port ethernet router in a plastic case, it has a USB 2.0 port and PoE output.
Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
It is affordable, small and easy to use. With it’s compact design and clean looks, it will fit perfectly into any SOHO environment.
Specifications
| Details |
| Product code |
RB750UPr2 |
| Architecture |
MIPSBE |
| CPU |
QCA9Mikrotik Technical Support1 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
113x89x28mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$59.95 |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE out |
Passive PoE |
| PoE in input Voltage |
8-30 V |
| Number of DC inputs |
2 (PoE-IN, DC jack) |
| DC jack input Voltage |
8-30 V |
| Max out per port output (input < 30 V) |
1 A |
| Max total out (A) |
2 A |
| Max power consumption |
51 W |
| Max power consumption without attachments |
3 W |
Ethernet
| Details |
| 10/100 Ethernet ports |
5 |
Peripherals
| Details |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Other
| Details |
| Current Monitor |
Yes |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
