Description

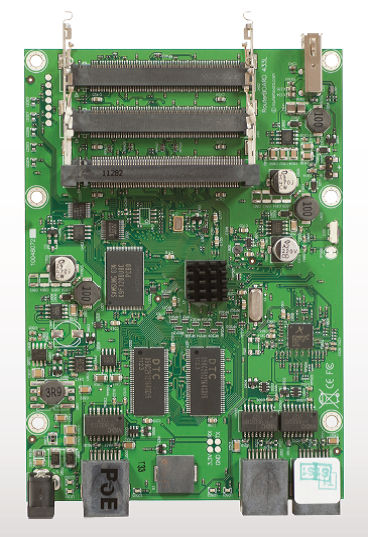

MikroTIk RouterBoard RB433UL
has three miniPCI slots, three Ethernet ports and one USB port for storage or a 3G modem.
Use this device in an outdoor case for a sector AP installation, or for a wireless point to point link.
It’s powered by an Atheros 400MHz CPU, has 64MB of RAM and a Level4 RouterOS license.
RouterBoard 433UL Technical details
CPU: Atheros AR7161 400MHz
Memory: 64MB DDR SDRAM onboard memory
Boot loader: RouterBOOT
Data storage: NAND memory chip
Ethernet: Three 10/100 Mbit/s Ethernet ports with Auto-MDI/X
miniPCI: Three MiniPCI Type IIIA/IIIB slots
Expansion: One USB 2.0 port with powering (5V 1A supply)
Extras: Reset switch, beeper, voltage monitor
Serial port: –
LEDs: Power, NAND activity, 5 user LEDs
Power options: PoE: 8-28V DC on Ether1 (Non 802.3af). Jack: 8-30V DC
Dimensions: 105 mm x 154 mm, Weight: 137g
Power consumption: 2W board only, 14W available to minIPCI cards
Operating System: MikroTik RouterOS, L4 license
