Description

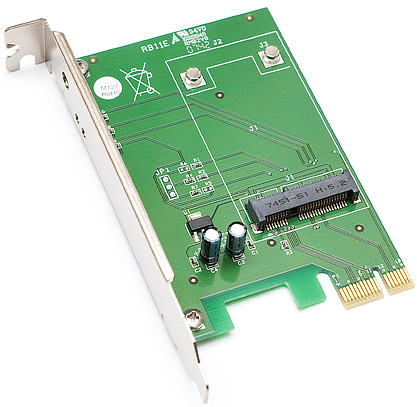

MikroTik RouterBOARD 11E miniPCI Express to PCI Express adapter is an adapter for 3.3v miniPCI Express to PCI Express standard sockets. The adapter is provided in PCI Express card form with an integrated miniPCI Express slot that allows you to use miniPCI cards in standard PCI sockets. Also available with bracket for RP-TNC connector (product code IA/MP1R)
NOTE: That only wireless 802.11a/b/g/n cards are supported in this adapter. It will not work with 3G mini cards due to USB connectivity incompatibility.
Ideal Usage/Features
- 1 Mini PCI Express Slot converted to PCI Express slot
- Optional TNC Pig Tail Coaxial connector mounting plate
- Additional RF Shielding plate mounts fitted as standard
Technical Details RouterBoard 11E
| Mini PCI Standard | One PCI Express Mini Card Slot for a 52 pin card |
| PCI Standard | PCI Express x1 (PCIe) PCI Express Single Lane, doesn’t support USB connectivity |
| Operation Voltage | PCIe 3.3V |
| Power Supply / Transfer |
Up to 10W supplied to PCI Express Mini card |
| LEDs | Three LEDs connected to each MiniPCI (according to standards) |
| Operating Temp | 0 C to 70 C (32 F to 158 F) |
| Operating Humidity | 0% to 90% (non Condensing) |
| Mechanical Mountings | Mounting for optional tin shield for two slots |
| Dimensions | 65mm x 100mm |
| Supported OS |
MikroTik RouterOS, Windows, Linux, BSD (Transparent) |
| Card Requirements | Available PCIe slot |
