Description

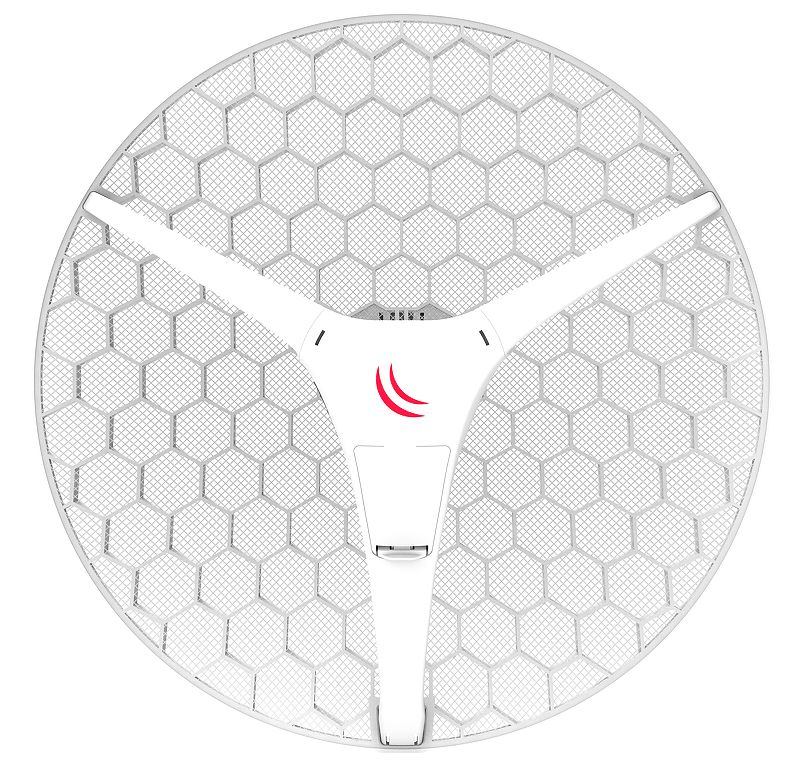

The LHG XL HP5 is a 5GHz 802.11 a/n wireless device with an integrated dual polarization 27 dBi grid antenna and high TX output power, designed to reach up to 40km in point-to-point setups at full speed.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
We have one version available.
LHG XL HP5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications
| Details | |
|---|---|
| Product code | RBLHG-5HPnD-XL |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | Ø 550 x 245 mm; |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $79.00 |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 7 W |
Wireless
| Details | |
|---|---|
| Antenna gain dBi for 5 GHz | 27 |
| Wireless 5 GHz standards | 802.11a/n |
| Wi-Fi generation | 4 |
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz chip model | AR9344 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 28 | -96 |
| 54MBit/s | 25 | -80 |
| MCS0 | 28 | -96 |
| MCS7 | 24 | -75 |
