Description

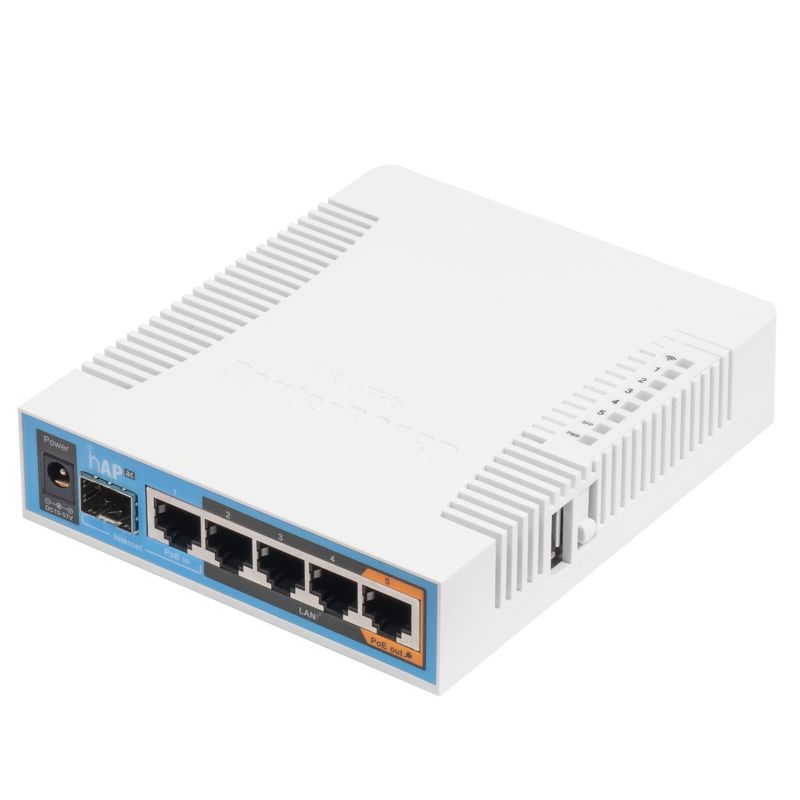

The hAP ac is our most universal home or office wireless device. It is a dual band device with Gigabit ports that allow the full advantages of 802.11ac technology speed, while maintaining compatibility with legacy devices in 2GHz 802.11 b/g/n and 5GHz a/n modes.
The omnidirectional antennas allow to mount the hAP ac in any location, and the high power transmitter will ensure good coverage for the mobile devices in your home, office or public location.
Other helpful features include a USB port for attaching extra storage or a 3G/4G modem, PoE output on the last Ethernet port, to power other RouterBOARD devices without needing an extra power adapter and an SFP cage, for connecting active or passive optical network modules.
– RB962UiGS-5HacT2HnT (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications
| Details |
| Product code |
RB962UiGS-5HacT2HnT |
| Architecture |
MIPSBE |
| CPU |
QCA9558 |
| CPU core count |
1 |
| CPU nominal frequency |
720 MHz |
| Dimensions |
114 x 137 x 29mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
128 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$129.00 |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE out |
Passive PoE |
| PoE in input Voltage |
11-57 V |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
11-57 V |
| Max out per port output (input < 30 V) |
700 mA |
| Max total out (A) |
700 mA |
| Max power consumption |
17 W |
Wireless
| Details |
| Wireless 2.4 GHz number of chains |
3 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2.5 |
| Wireless 2.4 GHz chip model |
QCA9880 |
| Wireless 5 GHz number of chains |
3 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
2 |
| Wireless 5 GHz chip model |
QCA9880 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
5 |
Fiber
Peripherals
| Details |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
29 |
-100 |
| 11MBit/s |
29 |
-94 |
| 6MBit/s |
29 |
-96 |
| 54MBit/s |
26 |
-81 |
| MCS0 |
29 |
-96 |
| MCS7 |
25 |
-77 |
| 5 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s |
28 |
-96 |
| 54MBit/s |
25 |
-81 |
| MCS0 |
28 |
-96 |
| MCS7 |
24 |
-77 |
| MCS9 |
21 |
-72 |
