CRS212-1G-10S-1S+IN

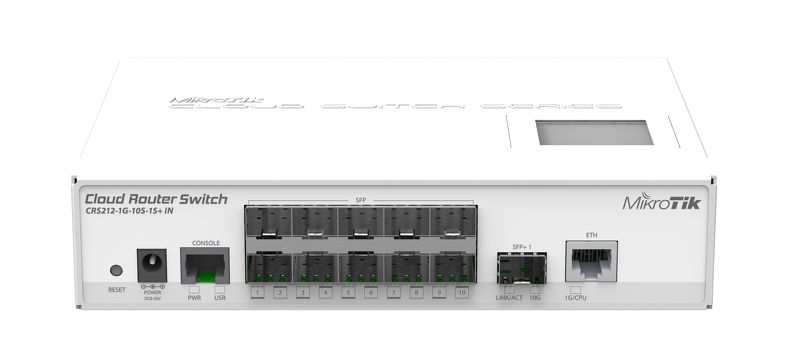

Cloud Router Switch 212-1G-10S-1S+IN is new “small size low cost” member of our CRS series. It comes with one Gigabit Ethernet RJ45 port, ten SFP cages and one 10G SFP+ cage, as well as LCD panel and serial port (RJ45). Product includes indoor desktop case and power supply. Special ears are provided for mounting the unit in rack.
Our CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
Product specifications
| Details |
| Product code |
CRS212-1G-10S-1S+IN |
| CPU nominal frequency |
400 MHz |
| CPU core count |
1 |
| Size of RAM |
64 MB |
| 10/100 Ethernet ports |
None |
| 10/100/1000 Ethernet ports |
1 |
| MiniPCI slots |
0 |
| MiniPCI-e slots |
0 |
| Number of USB ports |
0 |
| Power Jack |
1 |
| PoE out |
No |
| PoE in |
No |
| Supported input voltage |
8 V – 30 V |
| Voltage Monitor |
Yes |
| PCB temperature monitor |
Yes |
| CPU temperature monitor |
No |
| Dimensions |
200x144x47mm |
| Operating System |
RouterOS |
| Operating temperature range |
-35C to +65C tested |
| License level |
5 |
| Current Monitor |
Yes |
| CPU |
QCA8519-AC2C |
| Max Power consumption |
20W |
| SFP ports |
10 |
| SFP+ ports |
1 |
| Serial port |
RJ45 |
| Suggested price |
$219.00 |
Included parts
Switching results
| CRS212-1G-10S-1S+IN |
|
| Mode |
Configuration |
64 byte |
512 byte |
1518 byte |
| kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
| Switching |
Non blocking Layer 2 throughput |
31,250.0 |
16,000.0 |
4,934.2 |
20,210.5 |
1,706.8 |
20,726.9 |
| Switching |
Non blocking Layer 2 capacity |
31,250.0 |
32,000.0 |
4,934.2 |
40,421.1 |
1,706.8 |
41,4Mikrotik Technical Support.8 |
| Switching |
Non blocking Layer 1 throughput |
31,250.0 |
21,000.0 |
4,934.2 |
21,000.0 |
1,706.8 |
21,000.0 |
| Switching |
Non blocking Layer 1 capacity |
31,250.0 |
42,000.0 |
4,934.2 |
42,000.0 |
1,706.8 |
42,000.0 |
Performance test results
| CRS212-1G-10S-1S+IN |
QCA8519 Max possible throughput test |
| Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
| kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
| Bridging |
none (fast path) |
26.7 |
324.2 |
28.6 |
117.1 |
24.5 |
12.5 |
| Bridging |
25 bridge filter rules |
21.4 |
259.9 |
22.4 |
91.8 |
22.2 |
11.4 |
| Routing |
none (fast path) |
23.0 |
279.3 |
23.5 |
96.3 |
24.5 |
12.5 |
| Routing |
25 simple queues |
19.6 |
238.0 |
22.4 |
91.8 |
21.0 |
10.8 |
| Routing |
25 ip filter rules |
7.9 |
95.9 |
10.4 |
42.6 |
10.8 |
5.5 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
24V 1.2A power adapter
Ears
