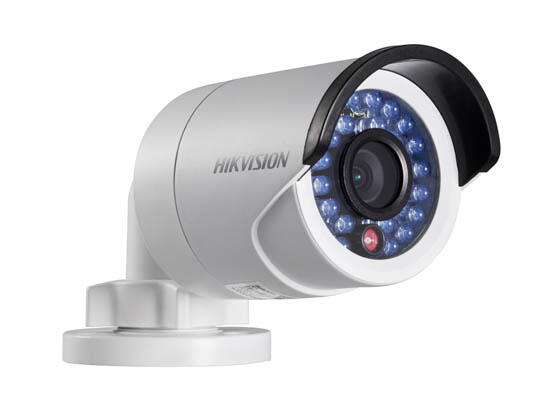

Telecamera bullet IP 4 Mpx DS-2CD2042WD-I
DS-2CD2042WD-I
4MP IR Bullet Network Camera
l Up to 4 megapixel high resolution
l Full HD1080p video
l Dual video streams
l 4mm/6mm fixed lens
l 120dB Wide Dynamic Range
l 3D Digital Noise Reduction
l Backlight Compensation
l DC12V & PoE
l Support H.264+
l Up to 30m IR range
l 3-axis adjustment
l IP67 weather-proof protection
l Metallic housing & bracket
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/3″ Progressive Scan CMOS |
| Min. Illumination: | | | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter time: | | | 1/3 s to 1/10,000 s |
| Lens: | | | 4mm, 6mm @ F2.0, Angle of view: 83°(4mm) , 55.4°(6mm) |
| Lens Mount: | | | M12 |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | 120 dB |
| Digital noise reduction: | | | 3D DNR |
| Compression Standard | ||
| Video Compression: | | | H.264/MJPEG/H.264+ |
| H.264 code profile: | | | Main Profile |
| Video bit rate: | | | 32Kbps~16Mbps |
| Dual Stream: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 2688 × 1520 |
| Frame Rate: | | | 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) |
| Image Settings: | | | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| BLC: | | | Yes, zone configurable |
| ROI: | | | Support |
| Network | ||
| Network Storage: | | | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger: | | | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
| Protocols: | | |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Security: | | | One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
| General | ||
| Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | | | DC12V ± 25%, PoE (802.3af Class 3) |
| Power Consumption: | | | Max. 5W |
| Weather Proof: | | | IP67 |
| IR Range: | | | Up to 30m |
| Dimensions: | | | 70×154.2×60.5 mm (2.8” × 6.2” × 2.4”) |
| Weight: | | | 500g (1.1lbs) |
