Description

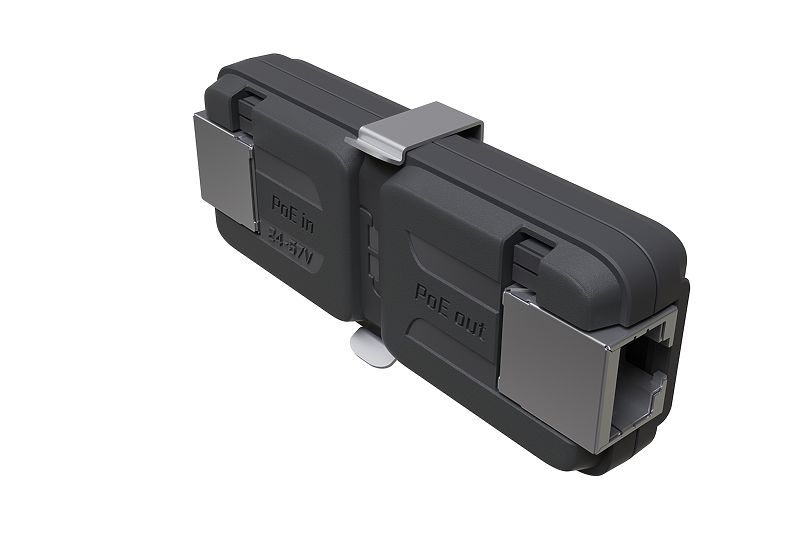

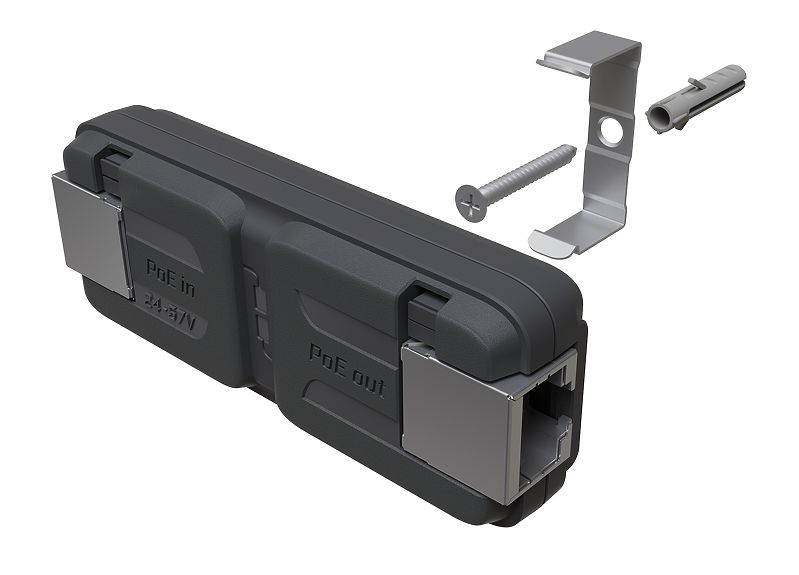

The GPeR unit allows to extend Ethernet cable by additional hop (< 100 – 150 m to regular network devices, and up to 210 m to another GPeR unit) up to 1,500 m.
Handy for highrise buildings, multi-apartment buildings, with many floors and sections, where very long Ethernet cables might be a problem.
Maximium allowed length of CAT6 Ethernet cable between GPeR and power source/router is up to 100 m (depending on cable quality, high quality – up to 150 m).
Maximium allowed distance of CAT6 Ethernet cable between two GPeR devices is up to 210 m (depending on cable quality).
Specifications
| Details | |
|---|---|
| Product code | GPeR |
| 10/100/1000 Ethernet ports | 1 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Max out per port output (input < 30 V) | 0.7 A |
| Max out per port output (input > 30 V) | 2 A |
| Max total out (A) | 2 A |
| PoE in | 802.3af/at |
| PoE in input Voltage | 24-57 V |
| PoE out | 802.3af/at |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $16.00 |
