Description

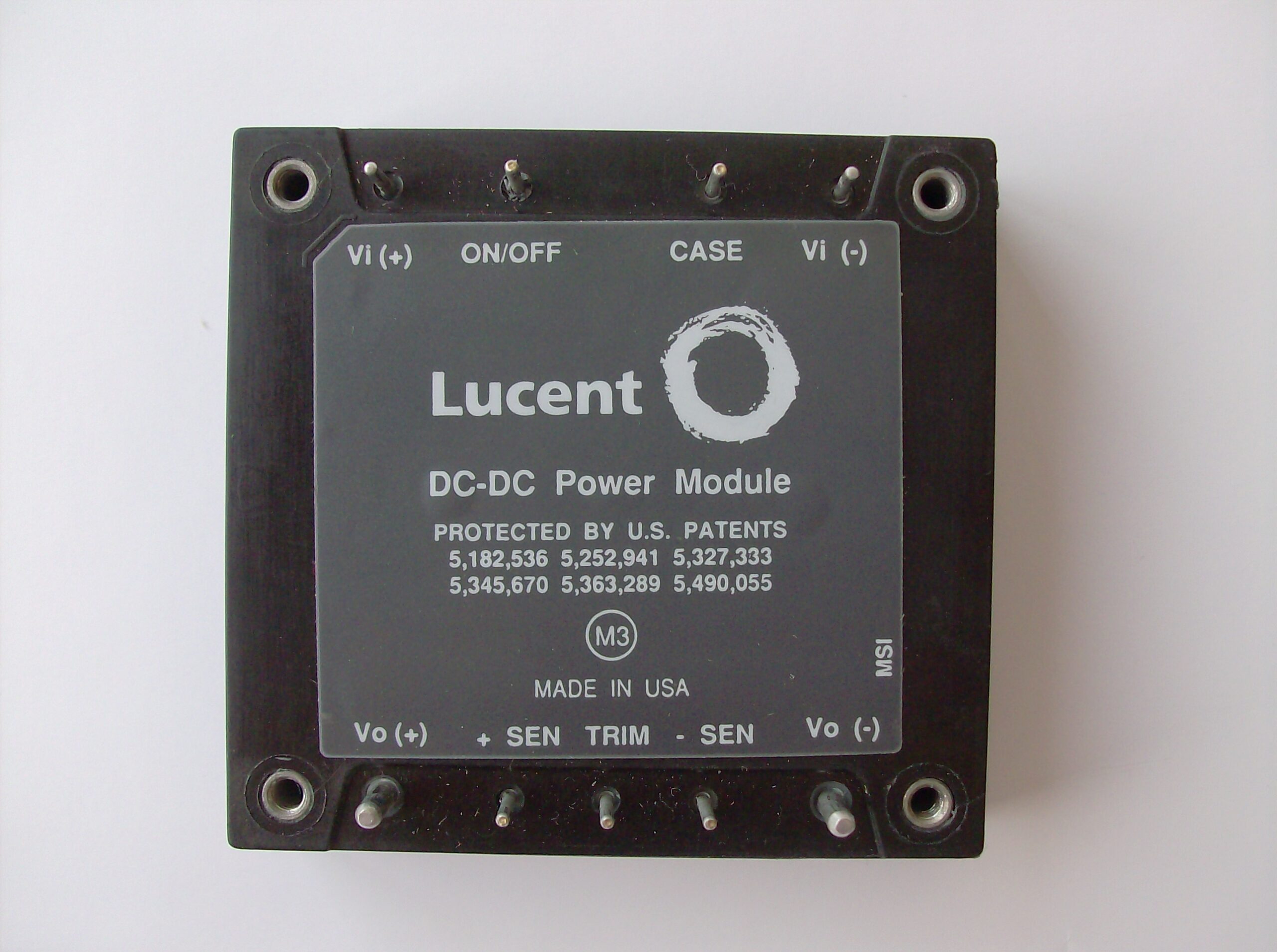

DC-DC CONVERTER 5V – 15A
The JW075A5, JW075B5, and JW075C5 Power Modules use advanced, surface-mount technology and deliver highquality, efficient, and compact dc-dc conversion.
Applications
■Distributed power architectures
■ Workstations
■ Computer equipment
■ Communications equipment
Options
■ Heat sinks available for extended operation
■ Choice of remote on/off logic configuration
Description
The JW075A5, JW075B5, and JW075C5 Power Modules are dc-dc converters that operate over an input voltage range of 36 Vdc to 75 Vdc and provide a precisely regulated dc output. The output are fully isolated from the input, allowing versatile polarity configurations and grounding connections. The modules have a maximum power rating of 75 W at a typical full-load efficiency of 85%.
The sealed modules offer a metal baseplate for excellent thermal performance. Threaded-through holes are provided to allow easy mounting or addition of a heat sink for high-temperature applications. The standard feature set includes remote sensing, output trim, and remote on/off for convenient flexibility in distributed power applications.
